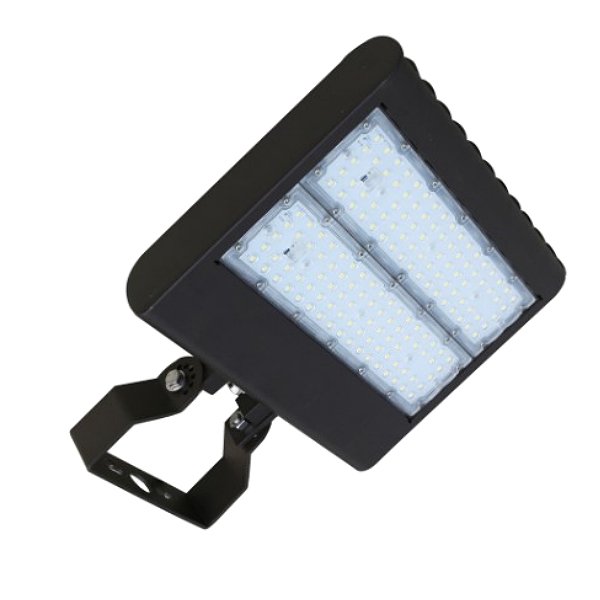

Product Description
ELENORA Series is a combination of slim design modern style for illuminating urban roads and parking lots. We used the latest solid state technology from Philips for a long life illuminance and high efficiency. All our outdoor fixtures are rated for wet locations and offers variety of mounting options.
LIGHTING SPECIFICATIONS
- Material: ACD12 Aluminum Heat Sink. Sturdy powder coated aluminum housing. Salt mist resistance & anti aging. High thermal conductivity. UV & Fire resistant high out put PC lenses.
- Bug rating: B3-U2-G3.
- Led type: Phillips Lummi LED’S LUXEON 3030 2D.
- Electrical: 120~ 277Vac, 50/60Hz Driver included.
- Power factor: ≥90%
- Led efficiency: 135 lm/W
- Color temperature: 4000K, 5000K
- Operation temperature: -35°C to 50°C
- Color Rendering Index (CRI): 85
- THD%: 16.28-17.71
- IP Rating: IP65
HOUSING SPECIFICATIONS
- Die-cast Aluminum housing with powder coat finish (Dark Bronze)
- Operating temperature: -40°F to 104°F
- Lifespan: 70,000 hr.
- IP Rating: IP65

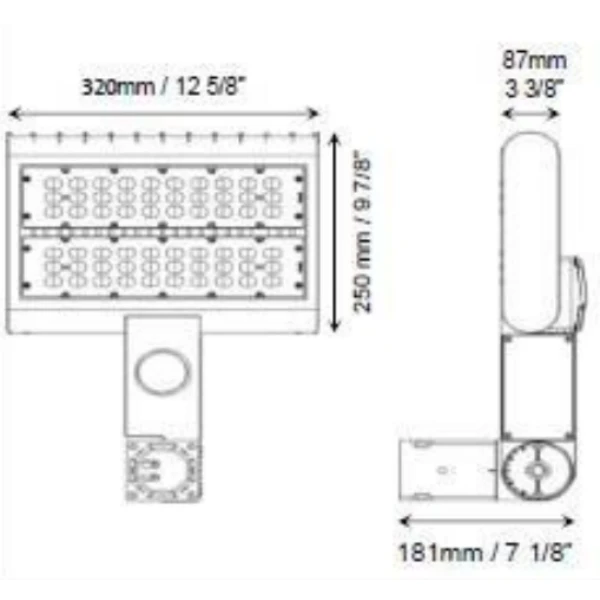

- Effective projected areas (EPA’s) are:
- Front = 0.38 square feet
- Side = 0.30 square feet
- Face = 1.05 square feet
