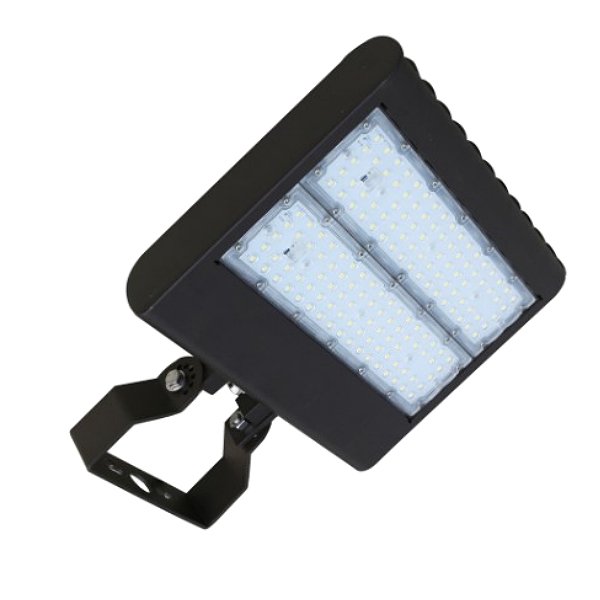

Elenora Series



Product Description

ELENORA Series is a combination of slim design modern style for illuminating urban roads and parking lots. We used the latest solid state technology from Philips for a long life illuminance and high efficiency. All our outdoor fixtures are rated for wet locations and offers variety of mounting options.


  • Material: ACD12 Aluminum Heat Sink. Sturdy powder coated aluminum housing. Salt mist resistance & anti aging. High thermal conductivity. UV & Fire resistant high out put PC lenses.
  • Bug rating: B3-U2-G3.
  • Led type: Phillips Lummi LED’S LUXEON 3030 2D.
  • Electrical: 120~ 277Vac, 50/60Hz Driver included.
  • Power factor: ≥90%
  • Led efficiency: 135 lm/W
  • Color temperature: 4000K, 5000K
  • Operation temperature: -35°C to 50°C
  • Color Rendering Index (CRI): 85
  • THD%: 16.28-17.71
  • IP Rating: IP65


  • Die-cast Aluminum housing with powder coat finish (Dark Bronze)
  • Operating temperature: -40°F to 104°F
  • Lifespan: 70,000 hr.
  • IP Rating: IP65
  • Effective projected areas (EPA’s) are:
    • Front = 0.38 square feet
    • Side = 0.30 square feet
    • Face = 1.05 square feet
