With a clean and slim profile, the Elenora Series is ideal for illuminating streets, parking areas, and public access roads. These fixtures use high performance solid state components to provide extended service life and energy-efficient lighting. Designed for outdoor use, each unit is rated for wet conditions and comes with a range of mounting options for poles, walls, or custom installations.


Lighting Specifications

• Material: ACD12 Aluminum Heat Sink. Sturdy powder coated aluminum housing. Salt mist resistance & anti aging. High thermal conductivity. UV & Fire resistant high out put PC lenses.

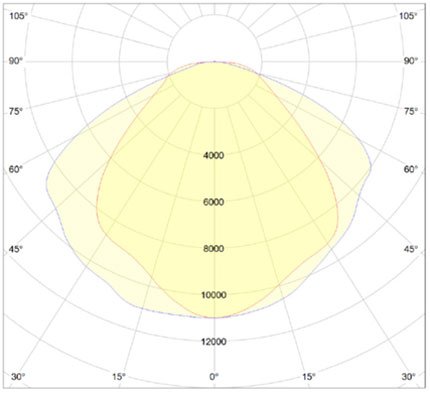

• Bug rating: B3-U2-G3.
• LED Type: Phillips Lummi LED’S LUXEON 3030 2D.
• Electrical: 120~ 277Vac, 50/60Hz Driver included.
• Power Factor: ≥90%
• LED Efficiency: 135 lm/W
• Color Temperature: 4000K, 5000K
• Operation Temperature: -35°C to 50°C
• Color Rendering Index (CRI): 85
• THD%: 16.28-17.71
• IP Rating: IP65

Housing Specifications

• Die-cast Aluminum housing with powder coat finish (Dark Bronze)
• Operating Temperature: -40°F to 104°F
• Lifespan: 70,000 hr.
• IP Rating: IP65

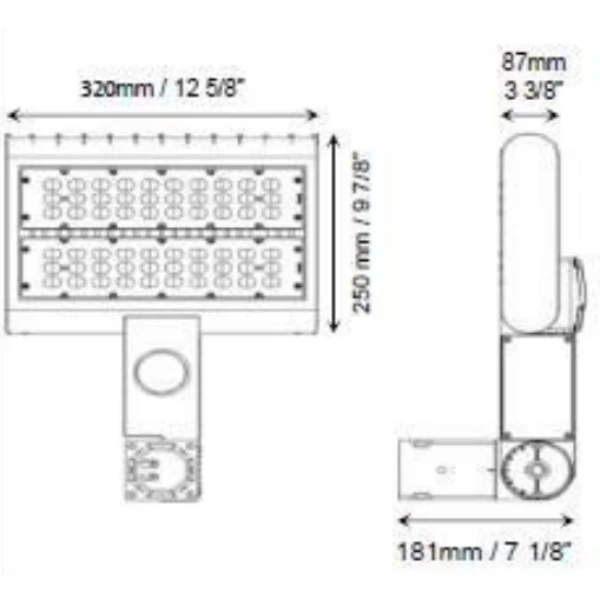

• Effective projected areas (EPA’s) are:
  • Front = 0.38 square feet
  • Side = 0.30 square feet
  • Face = 1.05 square feet
