LI-FDL300
LI-FDL300LI-FDL300-PXYYZZ-ConstructionHelsingor, Denmark - December 18th 2015.

Elenora Series

LI‐FDL300-PXYYZZ

Category:

Product Description

ELENORA Series is a combination of slim design modern style for illuminating urban roads and parking lots. We used the latest solid state technology from Philips for a long life illuminance and high efficiency. All our outdoor fixtures are rated for wet locations and offers variety of mounting options.


LIGHTING SPECIFICATIONS

  • Dimmable: 0~10V Dimming
  • Lens: TYPE III TIR optic Lens
  • LED: Philips Lumileds Luxeon 3030 High flux LED
  • Solid state lighting technology for long life, no maintenance needed and high-efficiency
  • Cord type: 6’ SJTW 18/3 AWG cable
  • Total lumens: 39000LM/37300LM
  • Color temperature: 5000K/4000K/3000k
  • Color rendering index: 82~84

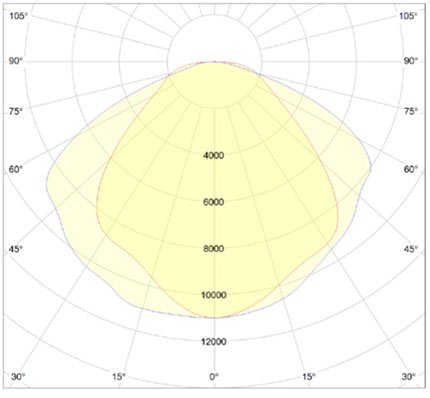

  • Beam Angle: 120°x90


HOUSING SPECIFICATIONS


  • Die-cast Aluminum housing with powder coat finish (Dark Bronze)
  • Operating temperature: -40°F to 104°F
  • Lifespan: 70,000 hr.
  • IP Rating: IP65
  • Effective projected areas (EPA’s) are:
    • Front = 0.38 square feet
    • Side = 0.50 square feet
    • Face = 1.75 square feet

Product Documents

Elenora

Elenora
